Wireless charger product design

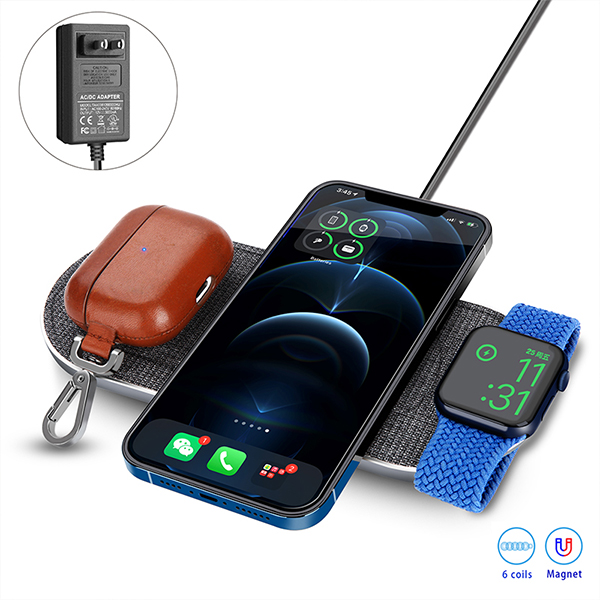

Magnetic 5-Coil Wireless Charger 25W Max, 3 in1 Dual Fast Charging ，Magnetic Positioning for iPhone 12/12 Mini/12 Pro Max. for Apple Watch 6 5 4 3 2 1 Charger Wireless (with 36W Adapter)

Magnetic 5-Coil Wireless Charger 25W Max, 3 in1 Dual Fast Charging ，Magnetic Positioning for iPhone 12/12 Mini/12 Pro Max. for Apple Watch 6 5 4 3 2 1 Charger Wireless (with 36W Adapter)

Multi-coil dual-charge wireless charger
Wireless charger 5 coil
airpods iwatch wireless charger
Dual 10W/7.5W multi-coil wireless charger
Product description: Input voltage :9V 3A Output Power: 5W / 7.5W / 10W*2 Watch: 3W Port: TYPE-C Product description: Compliance with certification: CE, FCC, ROHS, QI Size: 20*8.5*1CM Product weight: 200G Product mate
INQUIRY

(In stock, samples can be provided)

Product Features and Selling Points

[Strong magnetic attraction. For Apple 12 phones with built-in magnets.] A C-shaped bipolar S-N magnet is added to the upper and lower positions of each coil. Take Apple 12 as an example. Provide up and down positioning for mobile phones with built-in magnet positioning. Each coil can be accurately positioned. Avoid the phenomenon of inaccurate up and down offset.
[Working logic of 5 coils] 5 coils are arranged in a superimposed way. Increase the charging area of the mobile phone. Within these 5 coil areas. The receiving coil in the center of the mobile phone induces any transmitting coil on the base to realize wireless charging.
[3 in 1 patented design] One small coil on the far right is designed with Suspended type. Suspension charging is provided exclusively for single-turn straps of Apple Watch. For Apple Watch SE Series 6 5 4 3 2 1 provides magnetic wireless charging. The built-in 5 coils + magnets in the wireless charging area of the mobile phone provide fast charging for two Apple 12 at the same time. Or one Apple 12 one AirPods/AirPods Pro。
[Advantage] The beautiful and practical multi-coil wireless solution replaces the wires you hide in the sofa and across the table. Our solutions can meet your charging needs when you move around your entire home.
[WHAT YOU GET]: UUMAO Magnetic Charger Wireless Mat, 36W USB-C Power Adapter (including 5ft charging cable), product manual, 12-Month Warranty, and friendly Customer Service.

Company Information

Shenzhen LazyCat Communication Technology has been dedicating itself to one-stop solution of Wireless chargers and electronics.The service ranges from wireless charger solution design,production, after-sales service, etc.

Our factory locates in shenzhen district, factory mainly manufacture wireless charger。Since 2009. We provide Electronic product solutions and mobile communication antennas and various small terminal antennas. Since 2016. We provide wireless charger solutions. All our products comply with CE, FCC, ROHS and other standards,

After years of efforts, we provide customers with professional program design and product design, We have a highly qualified engineer team, advanced production equipment and detection systems, We only offer top quality products with competitive price, considerate service and timely delivery.

"One-stop service, Quick feedback" is our tenet. And we are ready to establish cooperation with new clients around the world based on mutual benefits and development. You will find us a reliable & powerful support from China.

Introduction: What is Shenzhen LazyCat Communication Technology Co., Ltd.?

Our team of engineers has more than 10 years of experience. We are a company and exporter of innovative solutions. The solutions we developed have been exported to more than 20 countries.

We are professional CHARGING EQUIPMENT INDUSTRY CHAIN SERVICE PROVIDER, focusing on comprehensive solutions. Including circuit design. Product structure design. Mold development. Product manufacturing production. Logistics and transportation, etc.

Products : What can Shenzhen LazyCat Communication Technology supply ?

Project planning, scheme circuit diagram design and shell structure design, mold development. Finished product assembly

Advantages: Why choose Shenzhen LazyCat Communication Technology ?

Honesty is Shenzhen LazyCat Communication Technology best policy;

Mutual benefit and long term cooperation is Shenzhen LazyCat Communication Technology goal;

Competitive pricing based on own world first class design is Shenzhen LazyCat Communication Technology unique advantage ;

Strict quality control and punctual shipment schedule is Shenzhen LazyCat Communication Technology basic guarantee;

FAQ of this One-stop service for wireless charger solution

1.What’s the design code are you adopt?

Answer: Usually we adopt GB8898, GB4943 code, however European standard also practice.

We provide the best performance wireless charger solution and other electronic equipment solutions and product structure design. These early designs provide a cost-effective solution for the finished.

2. What software do you use to draw PCB circuit diagrams?

Answer: PADS Layout, Altium Designer,

3.Structural design drawing software

Answer: AutoCAD, Creo

4. Graphic design drawing software?

Answer: CorelDRAW, PS, AI

5.Are you manufacturer?

Answer: Yes, we are also a wireless charger solution provider and a finished wireless charger manufacturer. We are good at ODM/OEM. We have more than 10 years of research and development experience and manufacturing experience.We also provide solutions for electronic products such as power bank, HUB, LED desk lamp and mobile phone peripheral accessories.

6. What kind of chip are you using?

Answer: We are the distributor of Sunplus Chips in Taiwan, China. But we will also use chips from mainland China, such as E-Charging and other chips with high performance in mainland China. Other imported chips such as TI and ST will also be used.

7. What’s the minimum order quantity would be?

Answer: The minimum order quantity for customized products is 1K. If it is in stock, no minimum order quantity is required.

8.What’s the production lead time?

Answer: Generally, after the deposit of the order is paid, PCBA production only takes 15 days. It takes 25 days to produce the finished product.

9.Are you close to the sea port?

Answer: Yes, we are near to the one of the biggest port in the world and it’s the one of our advantage to export the cargos worldwide.

10.How to control the quality?

Answer: From product design to product sale, every process will be strictly controlled.we do everything which include checking the manufacturing cards,do prototype assembly and do the aging test of PCBA and finished products. Carefully each part before shipping. Including functional and visual inspection. so that we can avoid possible mistake in Client’s side.

R&D Department

Electronic product solutions mobile communication antennas and various small terminal antennas since 2009. We have established (parent company, Shenzhen Xinbinuo Communication Technology Co., Ltd.)Technology center of Shenzhen LazyCat Communication was founded in 2016. At present,

there are over 10 R & D design and technical engineers,and among them here are 8 senior hardware electronics engineers and structure engineers and 2 senior software engineers,forming an experienced and skilled professional team and laying a solid foundation to Shenzhen LazyCat Communication Technology design and technology products.
