Wireless charger product design

Multi-function wireless charging product development design / OEM / ODM

Multi-function wireless charging product development design / OEM / ODM

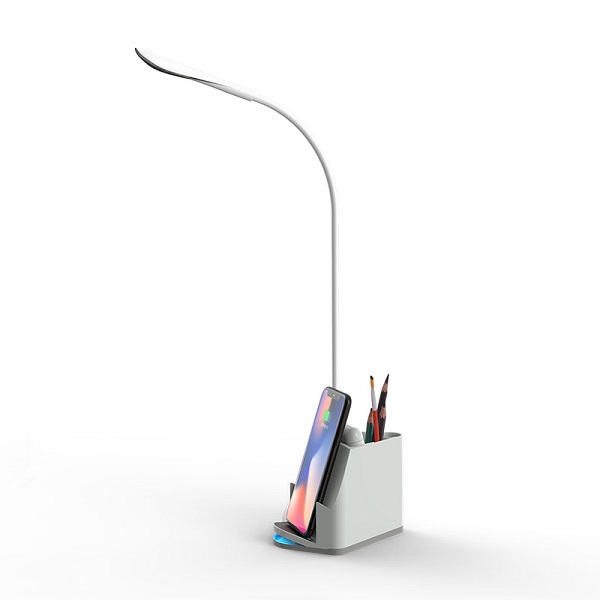

Pen holder wireless charger

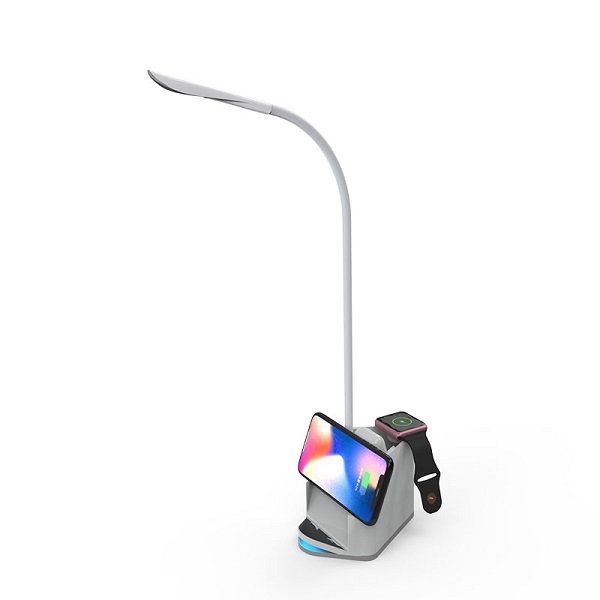

Desk lamp wireless charger

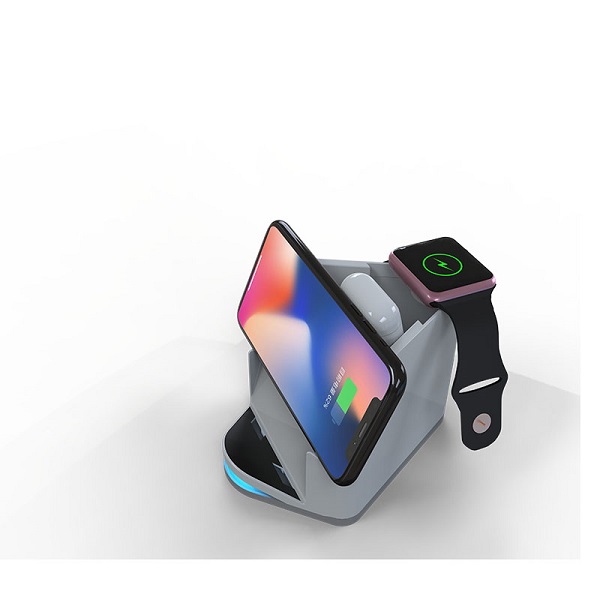

Multifunctional wireless charger
Product description: Mobile phone wireless charger AirPodswireless charger Iwatch uses original charging
INQUIRY

Mobile phone wireless charger

AirPodswireless charger

Iwatch uses original charging

7.5W Fast Wireless Charging for Apple. 10W
Fast Wireless Charging for Samsung and
AirPods.5W / iwatch 5W
Pluggable touch desk light function
charges vertically or horizontally,for comfort
viewing while charging
Product Material: Plastic

safe charging
1)Overvoltage protection 2) Foreign object detection
3) Temperature sensor control
Support PD input and AFC input QC input
and Huawei SFCP
Iwatch uses original charging cable, inlaid design

SPECIFICATION
Input current: 5V 2A / 9V 2A
Output power: 5W/7.5W/10W
Standard: QI 1.2.4
Coil: 1 +1+1coil
Color: Grey, can be customized
Input port:TYPE-C
Product Size: 155*125*112mm
Product Net Weight: 190g
MODEL NO. LZ019

FAQ of this One-stop service for wireless charger solution

1.What’s the design code are you adopt?

Answer: Usually we adopt GB8898, GB4943 code, however European standard also practice.

We provide the best performance wireless charger solution and other electronic equipment solutions and product structure design. These early designs provide a cost-effective solution for the finished.

2. What software do you use to draw PCB circuit diagrams?

Answer: PADS Layout, Altium Designer,

3.Structural design drawing software

Answer: AutoCAD, Creo

4. Graphic design drawing software?

Answer: CorelDRAW, PS, AI

5.Are you manufacturer?

Answer: Yes, we are also a wireless charger solution provider and a finished wireless charger manufacturer. We are good at ODM/OEM. We have more than 10 years of research and development experience and manufacturing experience.We also provide solutions for electronic products such as power bank, HUB, LED desk lamp and mobile phone peripheral accessories.

6. What kind of chip are you using?

Answer: We are the distributor of Sunplus Chips in Taiwan, China. But we will also use chips from mainland China, such as E-Charging and other chips with high performance in mainland China. Other imported chips such as TI and ST will also be used.

7. What’s the minimum order quantity would be?

Answer: The minimum order quantity for customized products is 1K. If it is in stock, no minimum order quantity is required.

8.What’s the production lead time?

Answer: Generally, after the deposit of the order is paid, PCBA production only takes 15 days. It takes 25 days to produce the finished product.

9.Are you close to the sea port?

Answer: Yes, we are near to the one of the biggest port in the world and it’s the one of our advantage to export the cargos worldwide.

10.How to control the quality?

Answer: From product design to product sale, every process will be strictly controlled.we do everything which include checking the manufacturing cards,do prototype assembly and do the aging test of PCBA and finished products. Carefully each part before shipping. Including functional and visual inspection. so that we can avoid possible mistake in Client’s side.

R&D Department

Electronic product solutions mobile communication antennas and various small terminal antennas since 2009. We have established (parent company, Shenzhen Xinbinuo Communication Technology Co., Ltd.)Technology center of Shenzhen LazyCat Communication was founded in 2016. At present,

there are over 10 R & D design and technical engineers,and among them here are 8 senior hardware electronics engineers and structure engineers and 2 senior software engineers,forming an experienced and skilled professional team and laying a solid foundation to Shenzhen LazyCat Communication Technology design and technology products.
